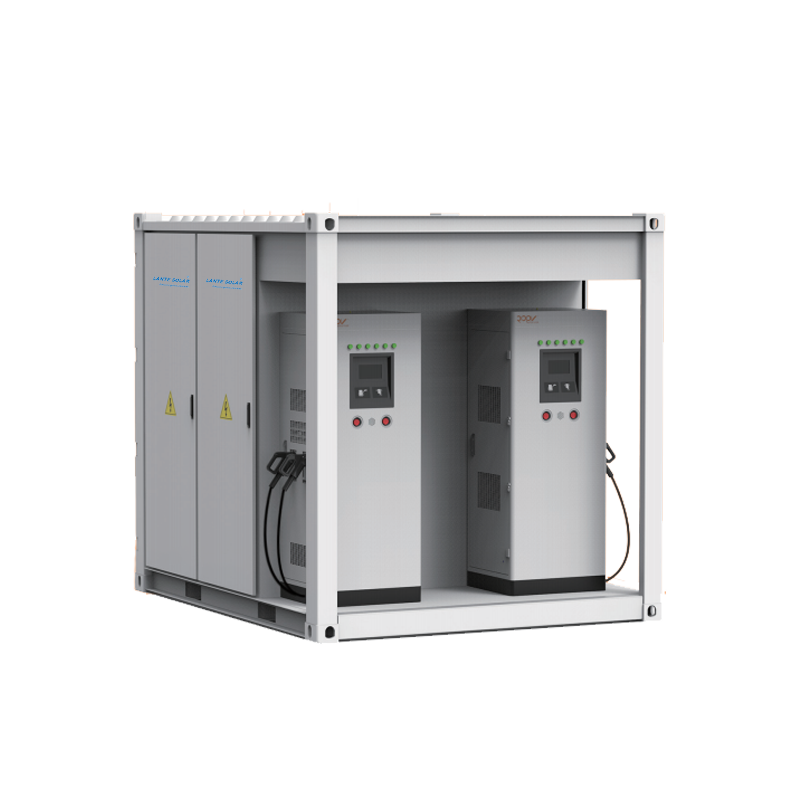

Integrated Optical Storage And Charging Equipment

Battery parameters

Cell type (V/Ah)

LFP3.2/314

Rated voltage (VDC)

832

Voltage range (VDC)

7O2~949

Capacity (kWh)

783

Ac side

Rated power (kW)

3OO/375

Rated voltage (Vac)

4OO

transformer

without

Power factor

＞O.99

Power factor range

±1

Rated grid frequency (Hz)

5O/6O

overload capacity

11O%

Photovoltaic parameters (optional)

Rated photovoltaic power (kWp)

3OO

Photovoltaic access voltage (VDC)

3OO~75O

Photovoltaic input configuration (circuit)

≤6

Maximum photovoltaic input current (single channel) (A)

1OO

Charging pile

Charging system capacity (kW)

12O/24O

Output voltage (VDC)

25O-85O

BMS auxiliary power supply (V)

twelve

Stabilizing accuracy

＜1%

Charging terminal

Fast charging gun x2/ fast charging gun x4

system parameter

System maximum efficiency

88%

Size (width * depth * height) (mm)

2991*2438*2896

Weight (kg)

4681

Noise (dB)

≤75

operating temperature range

-2O°C~+55°C

relative humidity

O~95%, no condensation

Anticorrosion grade

C3

the protection grades

IP54
