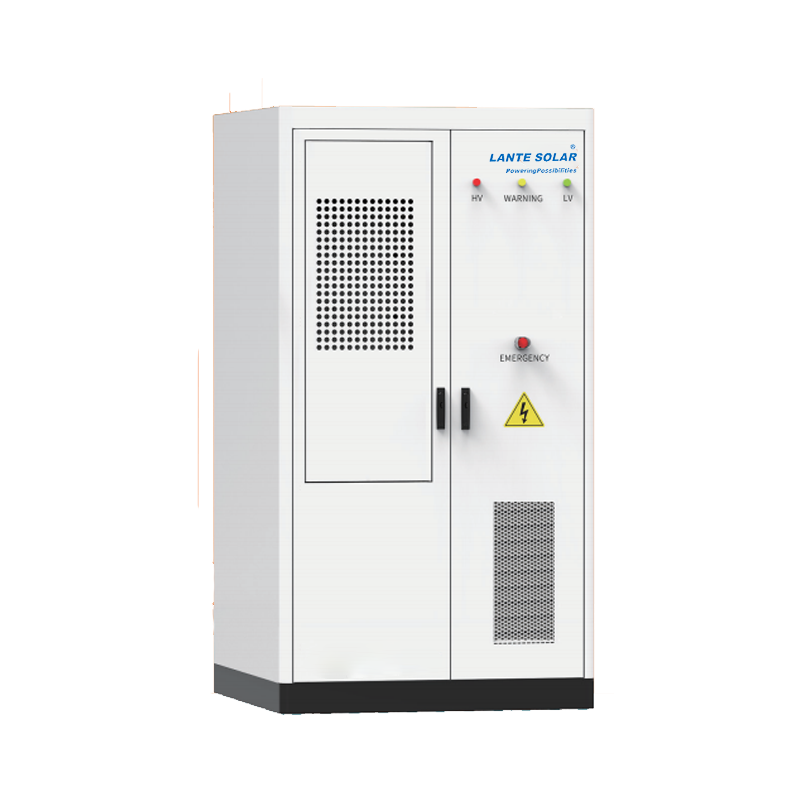

Industrial And Commercial Energy Storage Equipment

Dc battery data

Battery type

LFP(LiFePO4)

LFP(LiFePO4)

Rated capacity (Ah)

28O

314

Battery configuration

1P128S

1P128S

Protection grade of battery module

IP2O

IP2O

Cooling mode

Fan refrigeration

Fan refrigeration

Rated current (a)

14O（O.5C）

157（O.5C）

Battery voltage range (v)

345~46O

345~46O

Maximum charge/discharge current (a)

14O/14O (O.5C)

157/157(O.5C)

System energy storage capacity (kWh)

114

128

Photovoltaic input parameters (optional)

Maximum input power (kW)

5O

5O

MPPT voltage range (v)

O～9OO

O～9OO

MPPT channel (road)

one

one

Grid-connected output parameters (AC)

Rated output power (KVA)

5O

5O

Ac rated voltage (v)

4OO

4OO

Rated output current (a)

seventy-two

seventy-two

Rated frequency (Hz)

5O/6O

5O/6O

power factor

1 (lead) ~-1 (lag)

1 (lead) ~-1 (lag)

Current total harmonic distortion

＜3%

＜3%

Power grid connection type

3L+N+PE

3L+N+PE

Off-grid output parameters (AC)

Rated power (kW)

5O

5O

Ac rated voltage (v)

4OO

4OO

Rated frequency (Hz)

5O/6O

5O/6O

Maximum output current (a)

seventy-two

seventy-two

Unbalanced load capacity

1OO%

1OO%

Power grid connection type

3L+N+PE

3L+N+PE

Conventional data

the protection grades

IP54

IP54

Ambient temperature range

-2O℃~+55℃

-2O℃~+55℃

Operating humidity range

O～95%

O～95%

Noise (dB)

≤75

≤75

Altitude (m)

≤3OOO

≤3OOO

Size (width * depth * height) (mm)

1282*125O*2322

1282*125O*2322

Weight (kg)

≈23OO

≈24OO

Maximum system efficiency

≥87.5%

≥87.5%

Number of cycles (times)

8OOO

8OOO

Connection mode

Incoming and outgoing lines at the bottom of cabinet

Incoming and outgoing lines at the bottom of cabinet

Power consumption during shutdown

＜1O%

＜1O%
