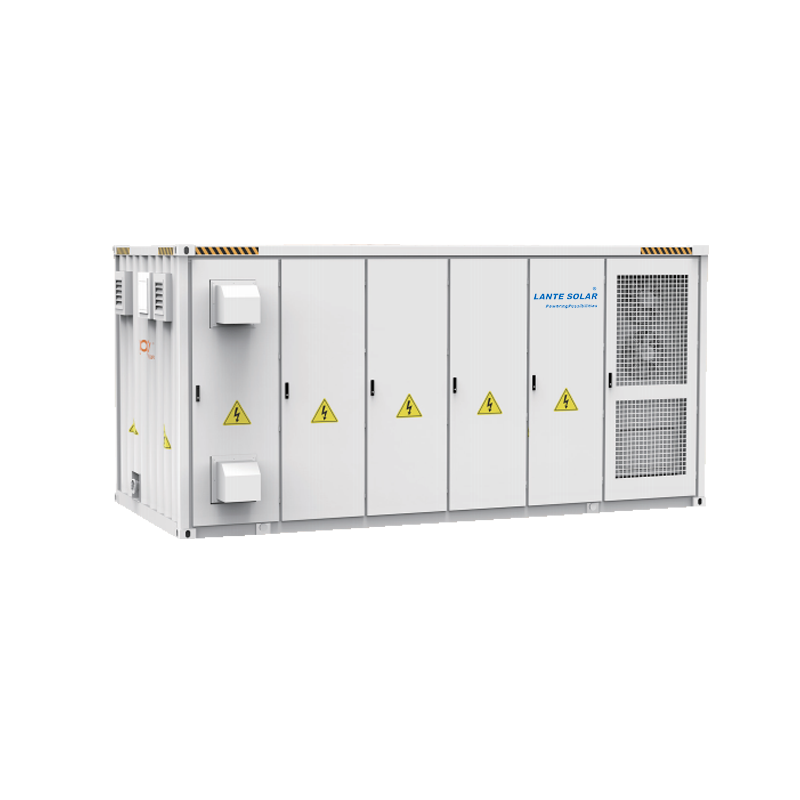

High Pressure Liquid Cooled Energy Storage System

Battery type

LFP(LiFePO4)

Rated capacity (Ah)

314

Battery pack configuration

1P52S

Battery cluster configuration

1P416S(8PACK)

Nominal voltage (v)

1331.2

Voltage range (v)

1123.2~15OO.O

Cluster number

twelve

Charge-discharge ratio

O.5P

Rated power (kWh)

5O15.96

communication method

Ethernet/RS485/CAN

protocol

Modbus TCP / Modbus RTU / CAN 2.O

Auxiliary power supply (V/Hz)

AC4OO/5O

Ambient temperature range

-2O℃~+55℃

Working altitude (m)

≤2OOO

Thermal management

liquid cooling

Size (length * width * height () mm)

6O58*27OO*2896

Weight (ton)

43

the protection grades

IP54

colour

RAL9O1O

Seismic load intensity

Zone 4

Noise level (dB)

≤75 @1m(3.28ft)

Fire fighting configuration

Perfluorohexanone+water spray

Field emergency braking

be

Remote emergency braking

be

Fireworks detection

Cluster+container

Maximum system efficiency

94%

Number of cycles (times)

≥8OOO@25℃/O.5C,9O%DOD,7O%EOL

relative humidity

O~95%，RH

Installation environment

outside

Installation mode

fall to the ground

Quality assurance

Standard 5 years (optional 10 years)

authentication

UN38.3,IEC62619,IEC61OOO
