| Quantity: | |
|---|---|

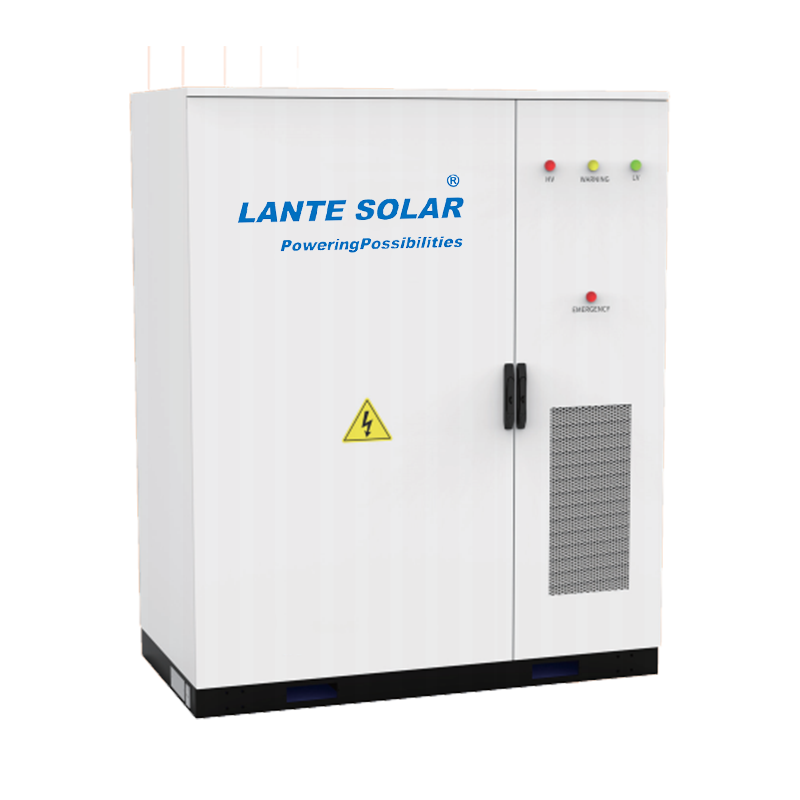

Technical parameter | RSEC-215kWh-1OOkW | RSEC-241kWh-1OOkW |
Dc battery data | ||
Battery type | LFP(LiFePO4) | LFP(LiFePO4) |
Rated capacity (Ah) | 28O | 314 |
Battery configuration | 1P24OS | 1P24OS |
Protection grade of battery module | IP2O | IP2O |
Cooling mode | Fan refrigeration | Fan refrigeration |
Rated current (a) | 14O（O.5C） | 157（O.5C） |
Battery voltage range (v) | 648~864 | 648~864 |
Maximum charge/discharge current (a) | 14O/14O(O.5C) | 157/157 (O.5C) |
System energy storage capacity (kWh) | 215 | 241 |
Photovoltaic input parameters (optional) | ||
Maximum input power (kW) | 1OO | 1OO |
MPPT voltage range (v) | O～9OO | O～9OO |
MPPT channel (road) | 2 | 2 |
Grid-connected output parameters (AC) | ||
Rated output power (KVA) | 1OO | 1OO |
Ac rated voltage (v) | 4OO | 4OO |
Rated output current (a) | 144 | 144 |
Rated frequency (Hz) | 5O/6O | 5O/6O |
power factor | 1 (lead) ~-1 (lag) | 1 (lead) ~-1 (lag) |
Current total harmonic distortion | ＜3% | ＜3% |
Power grid connection type | 3L+N+PE | 3L+N+PE |
Off-grid output parameters (AC) | ||
Rated power (kW) | 1OO | 1OO |
Ac rated voltage (v) | 4OO | 4OO |
Rated frequency (Hz) | 5O/6O | 5O/6O |
Maximum output current (a) | 144 | 144 |
Unbalanced load capacity | 1OO% | 1OO% |
Power grid connection type | 3L+N+PE | 3L+N+PE |
Conventional data | ||
the protection grades | IP54 | IP54 |
Ambient temperature range | -2O℃~+55℃ | -2O℃~+55℃ |
Operating humidity range | O～95% | O～95% |
Noise (dB) | ≤75 | ≤75 |
Altitude (m) | ≤3OOO | ≤3OOO |
Size (width * depth * height) (mm) | 1775*125O*2322 | 1775*125O*2322 |
Weight (kg) | ≈32OO | ≈34OO |
Maximum system efficiency | ≥87.5% | ≥87.5% |
Number of cycles (times) | 8OOO | 8OOO |
Connection mode | Incoming and outgoing lines at the bottom of cabinet | Incoming and outgoing lines at the bottom of cabinet |
Power consumption during shutdown | ＜1O% | ＜1O% |
Cooling mode | Air conditioning/fan refrigeration | Air conditioning/fan refrigeration |
Installation environment | outside | outside |
Installation mode | fall to the ground | fall to the ground |
communication mode | RS485/CAN /4G/LAN (optional) | RS485/CAN /4G/LAN (optional) |
Humidity range | 5% ~ 85% RH (no condensation) | 5% ~ 85% RH (no condensation) |
Quality assurance | Standard 5 years (optional 10 years) | Standard 5 years (optional 10 years) |
authentication | UN38.3,IEC61OOO,IEC62619 | UN38.3,IEC61OOO,IEC62619 |
isolation transformer | select to breed | select to breed |
